Mastering Construction Project Schedules: Understanding the Critical Path Method (CPM) for Non-Project Managers

In the construction industry, effective project scheduling is crucial for ensuring timely project delivery and resource management. The Critical Path Method (CPM) is a vital tool used to identify the sequence of tasks that directly impacts a project's completion date. This method allows project managers to prioritise tasks, manage multiple critical paths, and mitigate potential delays. For executives and other professionals without a project management background, understanding CPM and related scheduling concepts, such as Work Breakdown Structure (WBS), task dependencies, and program logic, is essential for navigating project timelines and contractual obligations. This guide breaks down these concepts in simple terms, offering insights into construction scheduling, common software tools, and practical applications to enhance Project Management Guide for Beginners 2024 | Wrike efficiency.

In this article, we will use a simple example program to describe the main concepts in project programming/scheduling.

Introduction

In the construction industry, effective project scheduling is crucial for ensuring timely project delivery and resource management. The Critical Path Method (CPM) is a vital tool used to identify the sequence of tasks that directly impacts a project's completion date. This method allows project managers to prioritise tasks, manage multiple critical paths, and mitigate potential delays. For executives and other professionals without a project management background, understanding CPM and related scheduling concepts, such as Work Breakdown Structure (WBS), task dependencies, and program logic, is essential for navigating project timelines and contractual obligations. This guide breaks down these concepts in simple terms, offering insights into construction scheduling, common software tools, and practical applications to enhance project management efficiency.

In this article, we will use a simple example program to describe the main concepts in project programming/scheduling.

The Importance of a Program Schedule in Construction Projects

In the construction industry, a well-structured program schedule is essential for the successful execution of projects. It serves as a roadmap that outlines the sequence of tasks, milestones, and deadlines, ensuring that all team members are aligned and aware of their responsibilities. A comprehensive schedule helps in resource allocation, risk management, and timely project delivery. By identifying critical paths and task dependencies, project managers can anticipate potential delays and implement strategies to mitigate them. This proactive approach not only enhances efficiency but also ensures that projects are completed within the stipulated time and budget, ultimately leading to client satisfaction and business success.

We will discuss the basic key concepts and some of the elements that are used in constructing a program.

Construction Software Tools

Construction scheduling often relies on specialised software tools like Primavera P6 (P6), Microsoft Project, and Procore. These tools help manage complex project schedules by automating task sequencing, dependency management, and critical path analysis. They provide visualisations like Gantt charts and allow for real-time updates, enabling project managers to track progress, allocate resources, and adjust schedules as needed.

Each component is critical in developing and managing a construction project schedule, ensuring that all tasks are organised, dependencies are understood, and the project can be completed on time and within scope.

In this article, we will use P6 as it is the most common and accepted software tool utilised in the industry.

Gantt Chart vs Network Diagram

Both network diagrams and Gantt charts are used to plan, schedule, and monitor the progress of construction projects, but they present the project data in distinct ways and serve slightly different purposes.

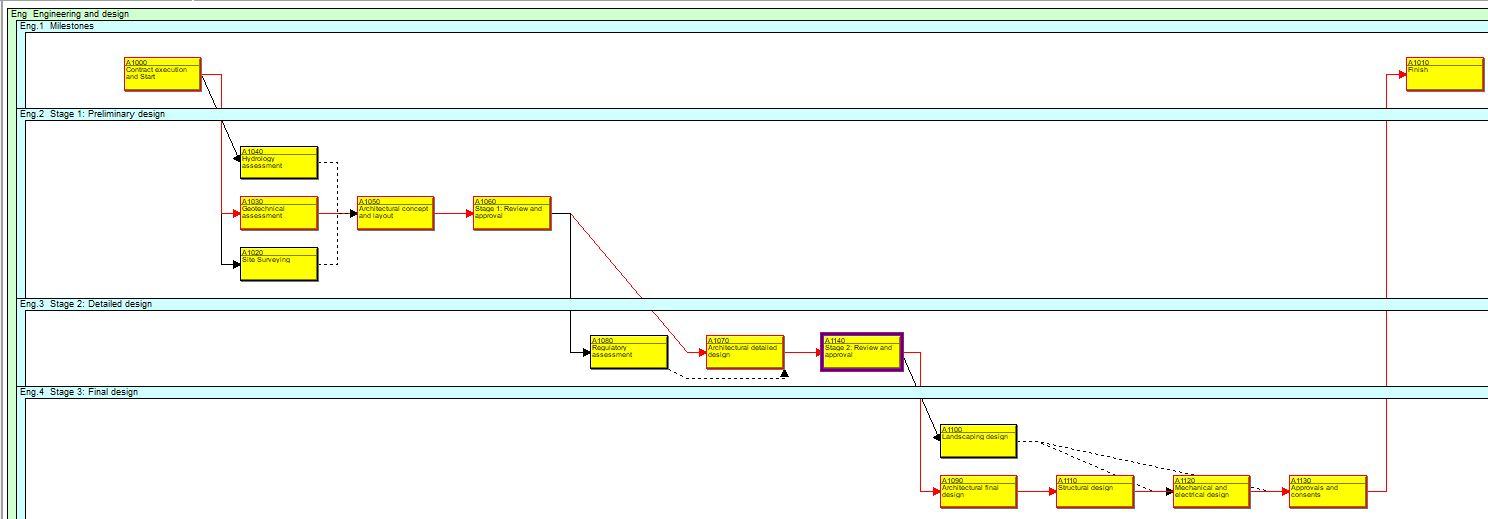

Network Diagram

A network diagram is a flowchart-like representation of the project’s tasks, displaying their sequential relationships. Each task is represented as a node (or box), and arrows indicate dependencies between tasks—such as predecessors and successors. The network diagram helps to identify the critical path, which is the longest sequence of dependent tasks that determines the minimum project duration. Network diagrams are particularly valuable for visualising the logical structure and dependencies of a project, making them a powerful tool for analysing task relationships and spotting potential scheduling conflicts early on.

Key Features:

• Focuses on task dependencies and relationships.

• Emphasises critical path identification.

• Visually shows the flow and sequence of project activities.

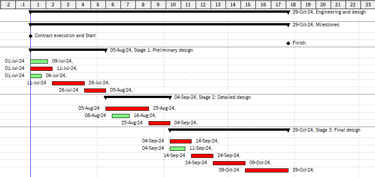

Gantt Chart

A Gantt chart is a bar chart that represents the project's timeline. Tasks are listed on the vertical axis, while time is represented on the horizontal axis. Each task is depicted as a horizontal bar, with the length of the bar indicating the task’s duration. The Gantt chart provides an easy-to-read visual overview of when tasks start, how long they take, and when they finish. It is particularly useful for tracking progress, as it can show which tasks are currently in progress, completed, or delayed. The critical path can also be highlighted within the Gantt chart, though the focus is more on task timelines than their dependencies.

Key Features:

• Visualises the project schedule over time.

• Each task is represented as a bar, showing start and end dates and duration.

• It can display task progress, dependencies, and the critical path.

Different parts of a program

The WBS is a hierarchical decomposition of the total scope of work required to complete a project. It breaks down the project into smaller, more manageable components, often referred to as "work packages," which can then be scheduled, assigned, and monitored. The WBS ensures that all deliverables are accounted for and helps in identifying the tasks necessary to achieve project objectives.

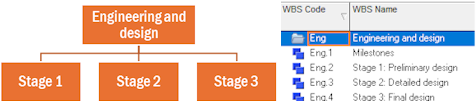

The above image depicts the WBS for our example project in two ways. The firs image is the diagram of the hierarchy commonly used in texts. The diagram on the right is how WBS is represented on P6.

Note: Although WBS is shown on Gantt charts, technically, they cannot be on a critical path. Some software allows linkage between tasks and WBS (such as MS Project); however, this is not an accepted practice in project programming and scheduling practice.

Work Breakdown Structure

Tasks

A task in project scheduling refers to a specific piece of work or activity that needs to be completed within a project. Tasks are the building blocks of a project schedule and are typically organised in sequence or parallel to represent the workflow. Each task has a start date, end date, and may depend on the completion of other tasks (dependencies). Proper task definition and sequencing are essential for accurate scheduling and project execution.

In P6, under each WBS, the corresponding tasks comprising the WBS are entered.

Milestones

A milestone is a significant point or event in a project timeline that marks the completion of a major phase or deliverable. Unlike tasks, milestones have no duration; they are used to signify important achievements or checkpoints that help track the project's progress. For example, reaching the "Design Approved" milestone indicates that the design phase is complete and the project can move on to the next phase.

In our example, milestones are collated under its own WBS. This is only for presentation and ease of reading the program. This WBS on its own does not have any intrinsic. value or logic.

Critical Path method

The Critical Path Method (CPM) is a scheduling technique used to identify the longest sequence of dependent tasks that must be completed on time for the entire project to be finished by its deadline. This sequence of tasks is known as the critical path. If any task on the critical path is delayed, the entire project will be delayed. A project schedule can have multiple critical paths if there are several sequences of tasks with the same total duration. The critical path is determined by the logical relationships (dependencies) between tasks, and when a schedule has multiple finish milestones, the critical paths are defined by the tasks leading to each milestone.

Red bars are a commonly accepted convention for depicting critical tasks in a program. Although this can be modified in the software, red is the common accepted industry practice.

Project Calendar

The project calendar outlines the working and non-working days for the project, including weekends, holidays, and planned downtime. It is essential that the project calendar aligns with the contracted calendar to ensure that all scheduled activities comply with the terms agreed upon with the client. Misalignment can lead to schedule delays, disputes, or claims for extensions of time.

In most programming software, the calendars influence the critical path, especially if there are multiple calendars behind each section or task in the program.

Task Dependencies, Program logic and links

Task dependencies define the relationships between tasks and determine the order in which tasks must be performed. Common types of dependencies include Finish-to-Start (FS), where one task must be completed before the next can begin, and Start-to-Start (SS), where two tasks can start simultaneously. Understanding and managing task dependencies is crucial for developing an accurate project schedule and avoiding bottlenecks.

In a construction schedule, predecessors and successors define the relationships between tasks, indicating the order in which work should be completed. Understanding these relationships is crucial for establishing task dependencies and ensuring that the project follows a logical sequence of activities.

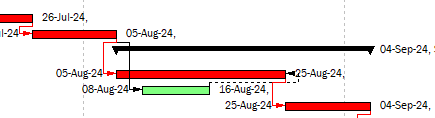

In a scheduling program, the tasks are depicted by lines connecting the tasks. Depending on the arrow's direction and the arrow's location on a bar, different types of linkages/logic are shown. Although it is expected to turn the viewing of logic links off for most more extensive programs to avoid covering the print with lines going up and down the page to improve readability, they are there for analysis purposes.

Predecessor

A predecessor is a task that must be completed before another task (the successor) can start. It serves as the prerequisite for the successor activity. For example, if Task A is to build the foundation of a building, Task B (installing the walls) cannot begin until Task A is finished. This ensures that tasks follow a logical and efficient order.

Successor

A successor is a task that follows the completion of a predecessor. Once the predecessor is completed, the successor task can commence. Using the same example, Task B (installing the walls) is the successor to Task A (building the foundation), as it depends on the completion of Task A before it can proceed.

Dependency Types

There are several types of dependencies between predecessors and successors, the most common being:

• Finish-to-Start (FS): The predecessor must finish before the successor can start.

• Start-to-Start (SS): The predecessor must start before the successor can start.

• Finish-to-Finish (FF): The predecessor must finish before the successor can finish.

• Start-to-Finish (SF): The predecessor must start before the successor can finish (less common).

Correctly identifying and establishing these relationships ensures that the project schedule is realistic and that tasks are carried out in the right order, which is essential for maintaining project flow and avoiding delays.

Three thing you should ask

Three questions that you can ask to ensure your project schedule is accurate and aligned with project objectives.

1. Are the critical tasks clearly identified, and is the critical path validated against realistic resource availability and project constraints?

2. Have task dependencies and relationships been properly defined, and are all predecessor-successor linkages logical and aligned with the contracted schedule?

3. Is the program calendar consistent with the contractual terms, and does it reflect the correct working and non-working days to avoid discrepancies in planned versus actual progress?
